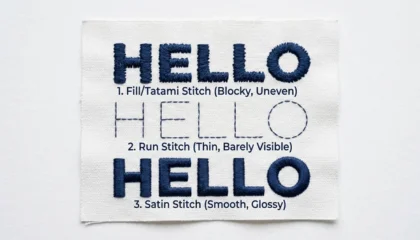

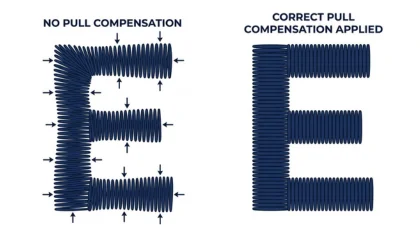

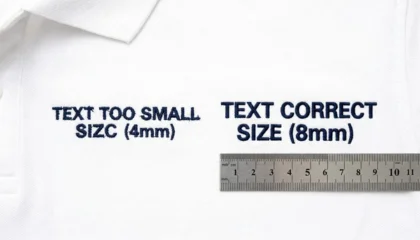

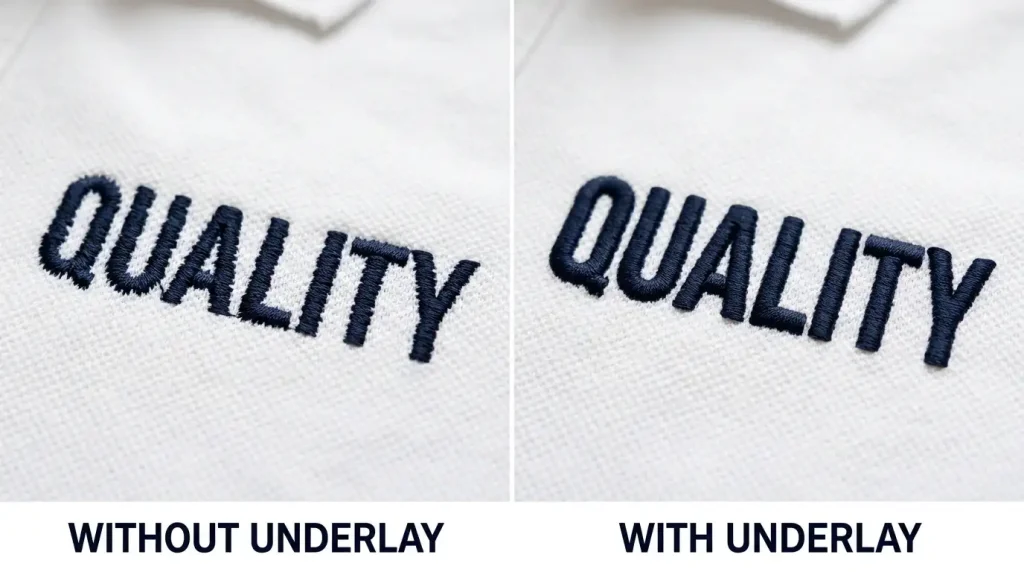

--- title: "How to Fix Jagged Embroidery Letters: A Step-by-Step Guide" description: "Jagged embroidery letters come from letter size, font, stitch type, underlay, and pull compensation. Follow this simple step-by-step guide to fix each one." canonical: "https://localhost:3005/embroidery/how-to-fix-jagged-embroidery-letters" last-updated: "2026-09-08" --- # How to Fix Jagged Embroidery Letters: A Step-by-Step Guide > Jagged embroidery letters come from letter size, font, stitch type, underlay, and pull compensation. Follow this simple step-by-step guide to fix each one. 2026-09-08 Source: https://localhost:3005/embroidery/how-to-fix-jagged-embroidery-letters --- **Quick answer:** Jagged embroidery letters almost always trace back to one of six things: letters too small for thread to form clean columns, a font never meant for stitching, the wrong stitch type for the column width, missing or wrong underlay, missing pull compensation, or density set wrong for the fabric. Fix those six in order and the roughness disappears. If you would rather skip straight to a clean file, our [**small lettering digitizing service**](https://sassydigitizing.com/digitizing-services/small-letter-digitizing) hand-builds every letter to these standards. Jagged embroidery letters are one of the most common complaints we hear, and also one of the most fixable. The rough edges, the letters that look chewed up instead of crisp, the counters (the little holes inside letters like a, e, o, and d) that fill in with thread instead of staying open, all of it comes down to a small set of digitizing decisions made before the file ever reaches a machine. None of it can be fixed after the fact with a better machine, better thread, or a more careful operator. It has to be fixed in the file. This guide walks through every one of those decisions in order, with the exact numbers we use in production, so you can either check your own file against them or know exactly what to ask for when you order a digitized file. **In this guide:** - [Step 1: Check your letter size](#step1) - [Step 2: Pick a font built for thread, not print](#step2) - [Step 3: Match the stitch type to the column width](#step3) - [Step 4: Choose the right thread weight and needle](#step4) - [Step 5: Add the right underlay](#step5) - [Step 6: Set pull compensation for your fabric](#step6) - [Step 7: Get the density right](#step7) - [Step 8: Always test on the real fabric](#step8) - [Quick recap: all eight fixes](#recap) - [Common mistakes to avoid](#mistakes) - [Frequently asked questions](#faq) ## ## Step 1: Check Your Letter Size Thread and needles occupy real physical space. Letters smaller than a set of practical minimums simply cannot form clean stitch columns, no matter what settings you throw at them afterward. If your text falls below these sizes, the first fix is the simplest one: make the letters bigger. | Letter Style | Minimum Height | | ------------------------------------ | -------------------- | | Capital letters only | 4mm, higher is safer | | Mixed case | 5mm | | General industry-safe minimum | 6mm | | Minimum column width, any letter bar | 0.8mm | ## ## Step 2: Pick a Font Built for Thread, Not Print Fonts designed for printed media routinely fail in embroidery. Thin serifs, script fonts with fine connecting lines, and any stroke under 0.8mm are the usual culprits, because thread cannot hold a shape that narrow without the stitches merging into a blob. Bold sans-serif fonts like Arial Bold or Helvetica Bold are the safer default for anything getting stitched small. If a client's logo comes with a thin or script font baked into the artwork, that font needs to be redrawn before digitizing, not stitched as-is. Our [**image vectorization service**](https://sassydigitizing.com/vector-art-services/image-vectorization-service) redraws thin letterforms at the right weight for embroidery before the file ever reaches a digitizer, which is the single biggest thing that separates a clean small-text run from a jagged one on logo work. [**Get Your Logo Font Cleaned Up for Embroidery**](https://sassydigitizing.com/vector-art-services/image-vectorization-service) ## ## Step 3: Match the Stitch Type to the Column Width Satin stitch is the default for lettering, but only inside a specific width range. Outside that range it starts working against you instead of for you. | Column Width | Best Stitch Type | What Goes Wrong Outside This Range | | ------------- | ------------------- | -------------------------------------------- | | Under 1.5mm | Running stitch | Satin stitches crowd together and look rough | | 1.5mm to 10mm | Satin stitch | Safe zone, clean and reliable | | Over 10mm | Split satin or fill | Stitches get too long, flop, and loop | ## ## Step 4: Choose the Right Thread Weight and Needle This is the step most guides skip, and it matters more than almost anything else on small text specifically. Standard 40wt thread is the default for most embroidery, but on tiny lettering it can be too thick for the counters (the enclosed spaces inside letters like a, e, o, and d) to stay open, so they fill in and the letter reads as a blob instead of a shape. | Thread Weight | Best For | Trade-off | | --------------- | ------------------------------------------------- | ----------------------------------------------------------------------------------------- | | 40wt (standard) | Letters 6mm and larger | Bolder look, but can crowd narrow letterforms and close counters below 6mm | | 60wt (fine) | Letters under 6mm, minimum column widths near 1mm | About 25 percent thinner than 40wt, sharper edges and open counters, less bold appearance | Needle size should scale with the thread. A 70/10 ballpoint needle is a safe standard for small lettering on knits like polos. For extreme detail work at the smallest end of the size chart above, some shops step down to a 65/9 needle, but those are fragile and need tension dialed in precisely, so they are worth it only when the design genuinely demands it. Avoid defaulting to a larger 75/11 needle on micro-text; it creates unnecessary fabric damage at that scale. Two more small-lettering habits worth building in: drop the machine's stitch speed to roughly 600 to 700 stitches per minute during the lettering portion of the run, since higher speeds give thread less time to seat cleanly in a tiny column, and avoid interior trims inside a word wherever possible, using jump stitches between letters instead so the machine isn't stopping and restarting inside text that is already working with very little margin for error. ## ## Step 5: Add the Right Underlay Underlay stitches hold the fabric steady underneath so the top stitches land exactly where they are digitized to land. Skipping underlay, or using the wrong type for the letter height, is one of the most common causes of jagged edges we see in files that come to us for a fix. | Letter Height | Underlay Type | | ------------- | ---------------------------------------- | | Under 5mm | Skip it (crowds the column at this size) | | 6mm to 10mm | Center-run underlay | | Above 10mm | Edge-run underlay | ## ## Step 6: Set Pull Compensation for Your Fabric Stitching pulls fabric inward over hundreds of passes, which is why a column can measure correctly on screen and still stitch out narrower than intended. Pull compensation digitizes the column slightly wider up front so the finished letter comes out at the size you actually designed. | Fabric Type | Pull Compensation | | ---------------------------------------- | ----------------- | | Stable fabric (twill, canvas) | 0.3mm to 0.5mm | | Stretchy fabric (polo, jersey, fleece) | 0.5mm to 0.8mm | | Very thick fabric (towels, heavy fleece) | Up to 1.0mm | Curved surfaces add another variable worth planning for: the curved surface of a cap pulls harder on every column than a flat garment does, so lettering digitized for a flat panel and stitched on a cap frame without adjustment is a common source of edges that looked fine in testing and came out jagged on the actual order. If small text is going on a cap, our [**cap and hat digitizing service**](https://sassydigitizing.com/digitizing-services/cap-digitizing) accounts for that curvature from the start. ## ## Step 7: Get the Density Right Density controls how tightly packed the stitches are within a column. A starting point of 0.4mm to 0.45mm spacing between stitches works for most fabric, adjusted slightly lower on thin fabric and slightly higher on thick or looped fabric like towels. Too tight and the column gets stiff and can perforate the fabric; too loose and gaps show through, which reads as roughness even when every other setting is correct. [**Get Small Lettering Hand-Digitized Right**](https://sassydigitizing.com/digitizing-services/small-letter-digitizing) ## ## Step 8: Always Test on the Real Fabric Software previews show outlines, not actual thread and fabric behavior. A file that looks clean on screen can still come out jagged once real thread, real tension, and real fabric are involved. Always run a physical test before a full production run, and check specifically the letter edges and the counters, the small enclosed spaces inside letters like a, e, o, and d, since those are the first place a bad setting shows up. ## ## Quick Recap: All Eight Fixes | Step | Fix | | ---- | ------------------------------------------------------------------------------------------ | | 1 | Keep letters at or above the minimum height for their style (4mm capitals, 5mm mixed case) | | 2 | Use a bold sans-serif font built for thread, not print | | 3 | Match satin, running, or split satin to the actual column width | | 4 | Drop to 60wt thread and a 70/10 or 65/9 needle under 6mm | | 5 | Add center-run or edge-run underlay matched to letter height | | 6 | Set pull compensation for the actual fabric, more on curved surfaces | | 7 | Hold density around 0.4mm to 0.45mm, adjusted for fabric thickness | | 8 | Test-stitch on the real fabric before running full production | ## ## Common Mistakes to Avoid | Mistake | Why It's a Problem | | ----------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------- | | Shrinking a logo's lettering without checking minimum sizes | Text that read fine at 8mm can drop below the 4-5mm floor once resized for a smaller placement like a cap or a cuff | | Leaving 40wt thread in for very small text | Thick thread can close the counters in letters like a, e, o, and d, turning them into solid blobs | | Judging quality from the on-screen preview only | Previews show outlines, not real thread and fabric behavior; the only real test is a physical stitch-out | | Using flat-panel pull compensation on a cap job | Curved surfaces pull harder on every column than a flat garment, so the letters come out narrower than planned | | Running full production speed through tiny lettering | Higher stitch speed gives thread less time to seat cleanly in a narrow column, which shows up as roughness | [**Try Your First File on Us**](https://sassydigitizing.com/first-order-discount) ## ## Frequently Asked Questions ### Can jagged embroidery letters be fixed after the design is already stitched? No. Thread patterns are locked in on the fabric once stitched. Every one of the fixes in this guide has to happen in the digitizing file before production, not after. ### What is the smallest text I can embroider without it looking jagged? Keep capital-only letters at 4mm or taller and mixed-case text at 5mm or taller. Below those heights, thread and needle width physically cannot form clean columns regardless of other settings. ### Does auto-digitizing software cause jagged letters more often? Auto-digitizing tools frequently misjudge underlay and pull compensation on small text, because the right settings depend on fabric type and letter size working together, not a single fixed rule. Manual digitizing typically produces cleaner results on small lettering for exactly this reason. ### Why do my letters look fine on screen but jagged once stitched? Software previews show outlines only, not actual thread and fabric behavior. Real-world test-stitching on the actual fabric matters more than any on-screen preview, especially for the counters inside letters like a, e, o, and d. ### Should I always use 60wt thread for lettering? Not always. 60wt is the right call under about 6mm, where it keeps counters open and edges sharp. Above 6mm, standard 40wt thread gives a bolder look without the crowding risk, so switching thread weight by letter size rather than using one weight for everything gets the best result on each. ### What needle size should I use for small lettering? A 70/10 ballpoint needle is a safe standard for small lettering on knits. For the smallest, most detail-heavy text, some shops step down to a 65/9 needle, but it is fragile and needs tension dialed in carefully, so reserve it for designs that genuinely need it rather than using it as a default. ### Does thread color affect how jagged small letters look? Not directly, but high-contrast color combinations make any roughness far more visible to the eye than a low-contrast pairing would. If a design has to run at the small end of the size range, expect edge imperfections to show up more on a design with strong color contrast. ### Why do my letters look worse on a cap than they did on a flat test piece? The curved surface of a cap pulls harder on every stitch column than a flat garment does. Pull compensation set for a flat test piece often is not enough once the same file runs on a curved cap frame, which is why cap lettering needs its own compensation values, not the flat-fabric defaults. ### Can I just increase density to fix jagged edges? Not on its own. Density that is too tight can stiffen the column and even perforate the fabric, while density that is too loose leaves visible gaps. Density has to be tuned alongside underlay and pull compensation, not used as a single fix for every jagged-letter problem. ### What is the fastest way to get lettering right without troubleshooting all of this myself? Send us your artwork and your fabric and placement, and our [**small lettering digitizing service**](https://sassydigitizing.com/digitizing-services/small-letter-digitizing) hand-builds every letter to the standards in this guide from the start, checked against our [**quality guarantee**](https://sassydigitizing.com/quality-guarantee) before it ever ships. See our [**pricing page**](https://sassydigitizing.com/pricing) for full details, or place a full order through our [**embroidery digitizing service**](https://sassydigitizing.com/digitizing-services).
