Small Lettering Digitizing: Clean, Legible Text Down to 3mm
Auto-digitizing can’t handle small text, so we hand-build each letterform in Wilcom V9 and E2 at the right width and density. Get clean, legible 3mm text on caps, polos, name tags, and workwear, delivered in 2–4 hours.
What Is Small Letter Digitizing?
Small lettering digitizing is the specialist process of hand-building embroidery column stitches at the minimum viable width for each character's stroke thickness. Auto-digitizing software applies uniform column widths designed for large text to small text, producing filled, unreadable blocks. We hand-construct every letter individually in Wilcom V9 and E2, keeping every stroke open and legible at the target height.
100% Manual Digitizing
Every lettering file is built by hand in Wilcom V9 and E2 by one of our 38 expert digitizers. We redraw letters as satin columns instead of using auto fonts, so text down to 3 mm stays readable.
Optimized for Fabric
Small text needs lighter underlay and extra pull compensation, and the settings change between pique, twill and towels. We set each file for your fabric.
Clean Thread Routes
Letters are joined with hidden travel stitches where possible, so names and monograms stitch with fewer trims and no loose threads between letters.
Clean Thread Routes
Proper jump stitch planning and trim sequencing prevents thread nesting around fine small-text columns and reduces trimming time in production. Every thread route is planned manually for clean results.
Manual vs Auto-Digitized Small Text Results
Text under 6mm is where most digitizing services fail. Here's the difference between a file that reads and one that doesn't.
Auto-Digitized Small Text
Most common cause of embroidery waste
- Column widths auto-generated too narrow: stitches collapse or bunch
- Thread overlaps itself creating lumps on letter curves
- Letters bleed into each other below 4mm, unreadable
- Fabric fibre shows through thin letterforms after stitching
- Curved letters O, C, G develop visible gaps at curve junction
- Often requires multiple re-runs to get an acceptable result
⚠️ Fails below 6mm in most cases
Manual Small Lettering (Sassy)
Hand-built for clean, readable results
- Each letter individually tracked with correct minimum column width
- Satin stitch width set to minimum viable width for the letter height
- Kerning and spacing adjusted for embroidery, not print
- Underlay type and density selected per letter shape, not universally
- Tested against minimum stitch width for the specific fabric
- Consistently readable down to 3mm on structured fabrics
✓ Readable down to 3mm on stable fabrics
Which Fonts Work in Small Embroidery
Not all fonts that look clean in print work at embroidery scale. The stitch itself has a minimum physical width, approximately 0.8mm. Any design element thinner than this cannot be reproduced.
💡 When a client insists on their brand font for small text and it's a thin-stroke font, we can often adjust the stroke weight to make it embroiderable without changing the overall look significantly.
✓ Do this:
- Bold sans-serif fonts: Arial Bold, Futura Bold, Helvetica Bold
- Simple serif fonts above 6mm: Times New Roman, Garamond medium weight
- Block letter styles: college block, varsity block, military stencil
- Keep letter spacing slightly open, tight kerning causes letter bleed
✗ Avoid this:
- Script fonts under 6mm: Brush Script, Lobster, Dancing Script
- Thin-stroke fonts: light weight, hairline, or condensed versions
- Outline-only fonts where the design relies on a thin border with no fill
- Fonts with fine serifs, serifs disappear below 8mm in embroidery
- Safe Minimum
- 4mm cap height
- Best-Case Min
- 3mm (manual + stable fabric)
- Best Stitch
- Satin column stitch
- Turnaround
- 2 to 4 hours
- Price
- $1 per 1,000 stitches
- Formats
- DST, PES, EMB, PXF
| Text Height | Auto-Digitized Result | Manual (Sassy) Result | Recommendation |
|---|---|---|---|
| Under 3mm | Illegible: thread bunches completely | Very difficult, advise against | Avoid on all fabrics |
| 3mm–4mm | Fails on most fabrics | Achievable on stable woven fabrics only | Manual only: sew-out test first |
| 4mm–6mm | Inconsistent, often poor | Clean and readable on most fabrics | Manual digitizing strongly recommended |
| 6mm–8mm | Acceptable on structured fabrics | Clean and reliable on all fabrics | Either works, manual preferred |
| Over 8mm | Good quality | Excellent quality | Standard digitizing works here |
Have small text in your design? Send it to us. We'll confirm what's achievable before you order.
Order Small Lettering DigitizingReal Small Lettering Results. Trusted by Our Customers.
See real examples of our small lettering digitizing work and hear from happy customers who trust us with their designs.
54,273+
Designs digitized
Google“Very fast response time and I'm happy with the result. Just make sure you know exactly what you want and be very clear with images, color codes etc. Will use again for sure!”
Chris Law
Trustpilot
4.7/5Fast Turnaround
2 to 4 hours
Manual Digitizing
100% Hand-Digitized
How Our Small Letter Process Works
From your artwork to a machine ready text file, here is exactly what happens step by step.
01
Upload Your Artwork
2 minutes
Upload your logo or design through our client sign-up/login. We accept JPG, PNG, PDF, and AI. Just let us know your fabric type and machine brand so we can ensure a perfect fit.
02
We Confirm & Quote
Within 30 minutes
We review your artwork to confirm stitch count and pricing. If the text is physically too small for thread, we advise you upfront no surprises, just professional results.
03

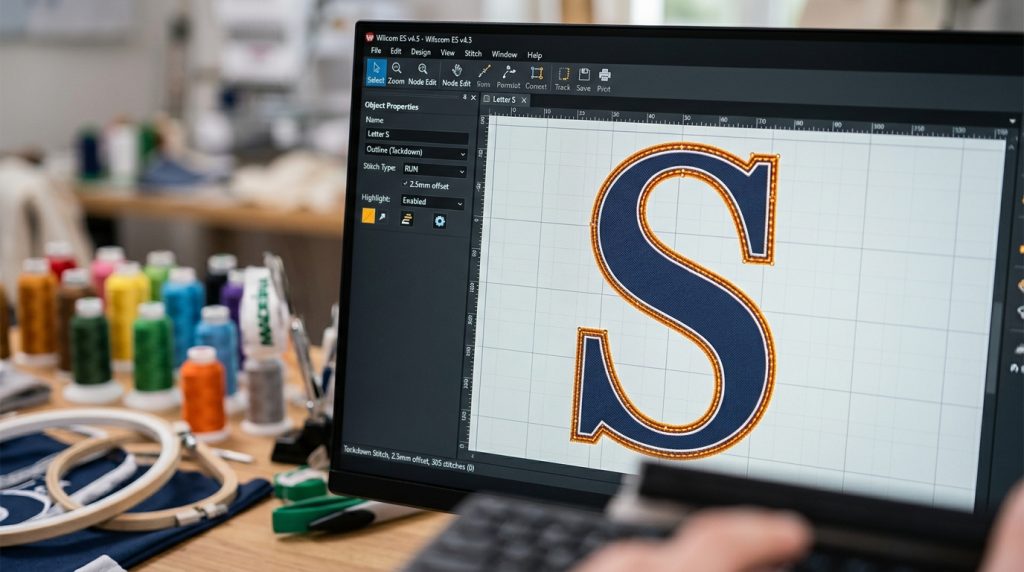

Manual Digitizing in Wilcom
2 to 4 hours
Our digitizers hand-map every letter manually, setting stitch widths, edge compensation, and underlay. A 1 to 2 hours rush service is available at no extra cost.
04
Preview & Delivery
Final Delivery
You receive a stitch preview before final delivery. If anything needs adjustment, we fix it free of charge. Your DST, PES, and EMB files are then delivered ready to use.
Tiny Text Embroidery Files Optimized for Maximum Clarity
Manually digitized with proper underlay and density control for clean small-letter sewouts.
Get Small Letter FileSmall Lettering Digitizing Specs
- Minimum legible height
- 3mm for bold sans-serif; 5mm for script fonts
- Recommended fonts
- Arial Black, Helvetica Bold, Impact, condensed gothic
- Monogram minimum
- 8mm for classic block or interlocking script layouts
- Recommended backing
- Tear-away for structured caps; cut-away for knit and woven garments
Seeing problems with existing lettering? fix jagged embroidery letters or fix distorted embroidery text. For monograms specifically, see our monogram digitizing guide.
Frequently Asked Questions
Common questions about small lettering and monogram digitizing.
What is the smallest embroidery text you can digitize?
About 3 mm (0.12 inches) tall, using bold, simple sans-serif fonts such as Arial Black or Helvetica Bold. Below that, the needle cannot form clean letters. Script and serif fonts need at least 6 mm.
Why does small embroidery text look filled in or unreadable?
Because the column width and density were set for larger text, often by auto-digitizing software. The letters merge into blobs and the counters (the holes in a, e, o) close up. Hand-set column widths and lighter density keep each letter open.
What fonts work best for small embroidery text?
Bold sans-serif and condensed fonts work best below 6 mm: Arial Black, Helvetica Bold, Impact and condensed gothic styles. Thin, script, decorative and serif fonts need more height to stitch cleanly.
Can you digitize a URL or phone number?
Yes, if the text is at least 4 to 5 mm tall and uses a simple bold font. We space punctuation like dots and slashes carefully so they do not disappear or merge with the letters.
Can you digitize a monogram?
Yes. We hand-build classic three-letter monograms in script, block, diamond and circle layouts for shirts, towels and gifts. Our monogram embroidery guide explains sizes and styles if you are choosing a design.
How much does small lettering cost and how fast is it?
Small lettering is included in the $15 to $25 price when it is part of a cap or left chest logo. Text-only designs are priced by stitch count. Standard delivery is 2 to 4 hours, with rush available.
Get Your Small Lettering Digitized Today
Upload your text or monogram and receive DST, PES, EMB and every other embroidery format in 2 to 4 hours. Not sure yet? Get 50% off your first order and check the quality first.
